Software Architecture Notes

Notes from “The Complete Guide to Becoming a Software Architect” Udemy course

1. What is a software architect

A developer knows what can be done, an architect knows what should be done. How do we use technology to meet business requirements.

General system requirements:

Fast
Secure
Reliable
Easy to maintain

Architect’s need to know how to code for:

Architecture’s trustworthiness
Support developers
Respect of developers

2. The architect’s mindset

Understand the business - Strengths, weaknesses, compettions, growth strategy.
Define the system’s goals - Goals are not requirements. Goals describe the effect on the organisation, requirements describe what the system should do.
Work for your client’s clients - Prioritise the end user.
Talk to the right people with the right language - What is the thing that really matters to the person I’m talking to?

Project managers care about how things affect deadlines, developers care about the technologies used, CEOs care about business continuity and bottom line.

3. The architecture process

Understand the system requirements - What the system should do.
Understand the non-functional requirements - Technical and service level attributes, e.g. number of users, loads, volumes, performance.
Map the components - Understand the system functionality and communicate this to your client. Completely non-technical at this point, no mention of specific technologies. A diagram of high level components helps.
Select the technology stack - Backend, frontend, data store.
Design the architecture
Write the architecture document
Support the team

Include developers in non-functional requirements and architecture design for two reasons:

Learn about unknown scenarios early
Create ambassadors

4. System requirements

The 2 types of requirements: functional and non-functional.

4.1. Functional requirements

“What the system should do”

Business flows
Business services
User interfaces

4.2. Non-functional requirements

“What the system should deal with”

Performance - latency and throughput
- Latency - How long does it take to perform a single task?
- Throughput - How many tasks can be performed in a given time unit?
Load - Quantity of work without crashing. Determines the availability of the system. Always look at peak (worst case) numbers.
Data volume - How much data will the system accumulate over time?
- Data required on day one
- Data growth (say, annually)
Concurrent users - How many users will be using the system? This includes “dead times” which differentiates it from the load requirement. Rule of thumb is concurrent_users = load * 10
SLA - Service Level Agreement for uptime.

The non-functional requirements are generally the more important in determining the architecture. The client will generally need guiding towards sensible values, otherwise they just want as much load as possible, as much uptime as possible etc.

5. Application types

The application type should be established early based on the use case and expected user interaction.

Web apps
- Serve html pages.
- UI; user-initiated actions; large scale; short, focused actions.
- Request-response model.
Web API
- Serve data (often JSON).
- Data retrieval and storage; client-initiated actions; large scale; short, focused actions.
- Request-response model.
Mobile
- Require user interaction; frontend for web API; location-based.
Console
- No UI; limited interation; long-running processes; short actions for power users.
- Require technical knowledge.
Service
- No UI; managed by service manager; long-running processes.
Desktop
- All resources on the PC; UI; user-centric actions.
Function-as-a-service
- AWS lambda

6. Select technology stack

Considerations:

Appropriate for the task
Community - e.g. stack overflow activity
Popularity - google trends over 2 years

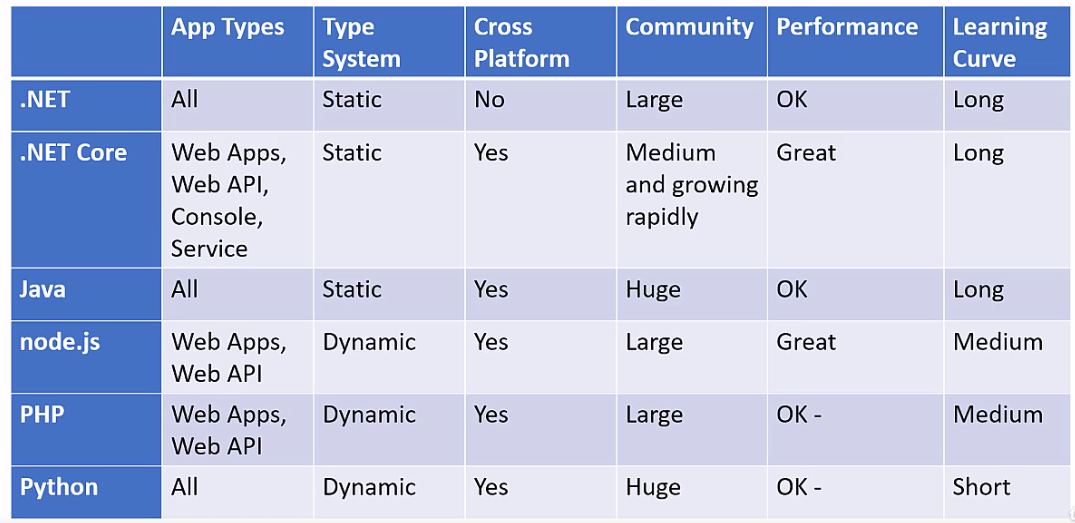

6.1. Backend technology

Covers web app, web API, console, service.

Options: .NET, Java, node.js, PHP, Python

6.2. Frontend technology

Covers:

Web app - Angular, React
Mobile - Native (Swift, Java/Kotlin), Xamarin, React Native
Desktop - depends on target OS

6.3. Data store technology

SQL - small, structured data

Relational tables
Transactions
- Atomicity
- Consistency
- Isolation
- Durability
Querying language is universal

NoSQL - huge, unstructured or semi-structured data

Emphasis on scale and performance.
Schema-less, with entities stored as JSON.
Eventual consistency - data can be temporarily inconsistent
No universal querying language

7. The *-ilities

Quality attributes that describe technical capabilities to fulfill the non-functional requirements. Non-functional requirements map to quality attributes, which are designed in the architecture.

Scalability - Adding computing resources without any interruption. Scale out (add more compute instances) is preferred over scale up (increase CPU, RAM on the existing instance). Scaling out introduces redundancy and is not limited by hardware.
Manageability - Know what’s going on and take action accordingly. The question “who reports the problems” determines if a system is manageable. The system should flag problems, not the suer.
Modularity - A system that is built from blcoks that can be changed or replaced without affecting the whole system.
Extensibility - Functionality of the system can be extended without modifying existing code.
Testability - How easy is it to test the application. Independent modules and methods and single responsibility principle aid testability.

8.Components architecture

A software component is a piece of code that runs in a single process. Distributed systems are composed of independent software components deployed on separate processes/servers/containers.

Component architecture relates to the lower level details, whereas system architecture is the higher level view of how the components fit together to achieve the non-functional requirements.

8.1. Layers

Layers represent horizontal functionality:

UI/SI - user interface or service interface (i.e. an API), authentication
Business logic - validation, enrichment, computation
Data access layer - connection handling, transaction handling, querying/saving data

Code can flow downwards by one layer only. It can never skip a layer and can never go up a layer. This enforces modularity.

A service might sit across layers, for example logging sits across the 3 layers described above. In this case, the logging service is called a “sross-cutting concern”.

Each layer should be independent of the implementation of other layers. Layers should handle exceptions from those below them, log the error and then throw a more generic exception, so that there is no reference to other layers’ implementation.

Layers are part of the same process. This is different from tiers, which are processes that are distributed across a network.

8.2. Interfaces

An interface declares the signature of an implementation. This means that each implementation must implement the methods described. The abstract base class in Python is an example of this.

Close coupling should be avoided; “new is glue”.

8.3. SOLID

Single responsibility principle: Each class, module or method should have exactly one responsibility.
Open/closed principle: Software should be open for extension but closed for modification. Can be implemented using class inheritance.
Liskov substitution principle: If S is a subtype of T, then objects of type T can be replaced with objects of type S without altering the program. This looks similar to polymorphism but is stricter; not only should the classes implement the same methods, but the behaviour of those methods should be the same too, there should be no hidden functionality performed by S that is not performed by T or vice versa.
Interface segregation principle: Many client-specific interfaces are preferable to one general purpose interface.
Dependency inversion principle: High-level modules should depend on abstractions rather than concrete implementations. Relies on dependency injection, where one object supplies the dependencies of another object. A factory method determines which class to load and returns an instance of that class. This also makes testing easier, as you can inject a mock class rather than having to mock out specific functionality.

8.4. Naming conventions

Structure - case, underscores
Content - class names should be nouns, methods should be imperative verbs

8.5. Exception handling

Some best practices:

Only catch exceptions if you are going to do something with it
Catch specific exceptions
Use try-catch on the smallest code fragments possible
Layers should handle exceptions raised by layers below them, without exposing the specific implementation of the other layer. Catch, log, re-raise a more generic error.

Purposes of logging:

Track errors
Gather data

9. Design patterns

A collection of general, reusable solutions to common software design problems. Popularised in the book “Design patterns: elements of reusable object-oriented software”.

The factory pattern: Creating objects without specifying the exact class of the object. Avoids strong coupling between classes. Create an interface, then a factory method returns an instance of a class which implements that interface. If the implementation needs to change, we only need to change the factory method.
The repository pattern: Modules which don’t work with the data store should be oblivious to the type of data store. This is similar to the concept of the Data Access Layer. Layers are for architects, design patterns are for developers. They both seek to solve the same issue.
The facade pattern: Creating a layer of abstraction to mask complex actions. The facade does not create any new functionality, it is just a wrapper integrating existing modular functions together.
The command pattern: All the action’s information is encapsulated within an object.

10. System architecture

The architecture design is the big picture that should answer the following:

How will the system work under heavy load?
What will happen if the system crashes at a critical moment?
How complicated is it to update?

The architecture should:

Define components
Define how components communicate
Define the system’s quality attributes

Make the correct choice as early as possible

10.1. Loose coupling

Ensuring the services are not strongly tied to other services. Avoid the “spiderweb” - when the graph of connections between services is densely connected.

Prevents coupling of platforms and URLs.

To avoid URL coupling between services, two options are:

“Yellow pages” directory
Gateway

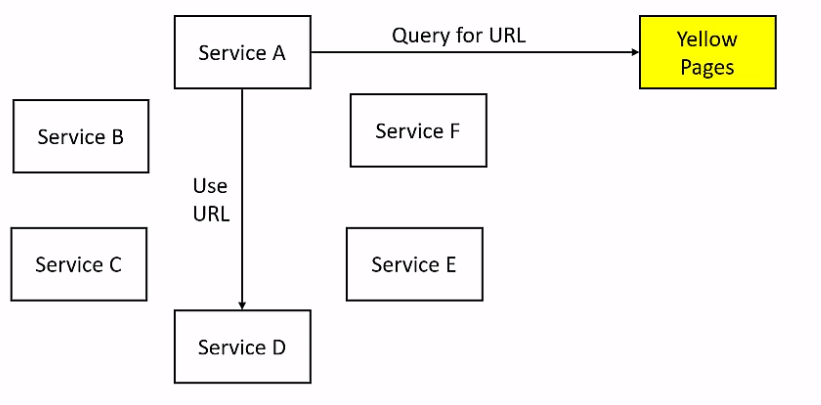

The “yellow pages” contains a directory of all service URLs. If service A wants to query service D, A queries the yellow pages for D’s URL, then uses that URL to query D. This means that service A does not hardcode any information about service D. If D’s URLs change, then only the yellow pages need to be updated. Services only need to know the yellow pages directory’s URL.

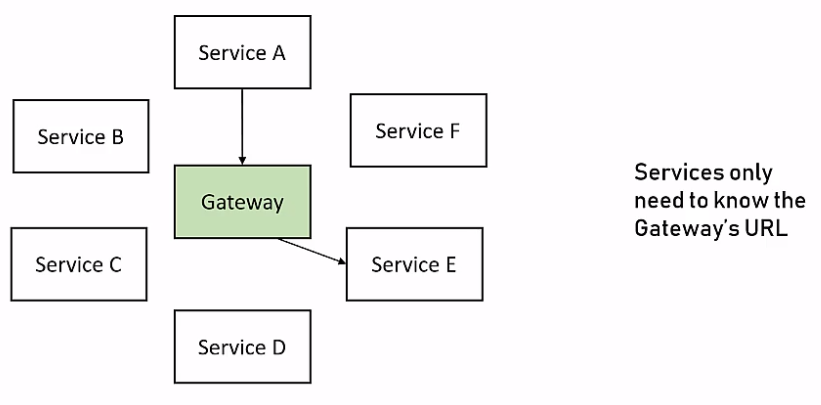

The gateway acts as a middleman. It holds a mapping table of all URLs Service A queries the gateway, which in turn queries service E. Service A doesn’t need to know about E or any other services. Services only need to know the gateway’s URL.

10.2. Stateless

The application’s state is stored in only 2 places:

The data store
The user interface

Stateless architecture is preferred in virtually all circumstances.

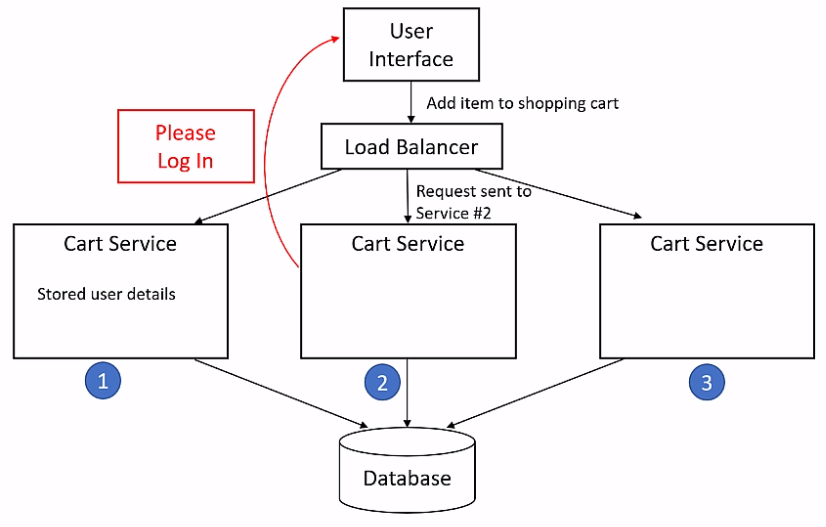

In a stateful architecture, when a user logs in, the login service retrieves the user details from the database and stored them for future use. Data is stored in code.

If the login request was routed to server A, the user’s details are stored there. If the user later tried to add itemsto the cart and their cart service request is routed to server B, then their user details will not exist as those are stored on server A.

Disadvantages of stateful:

Lack of scalability
Lack of redundancy

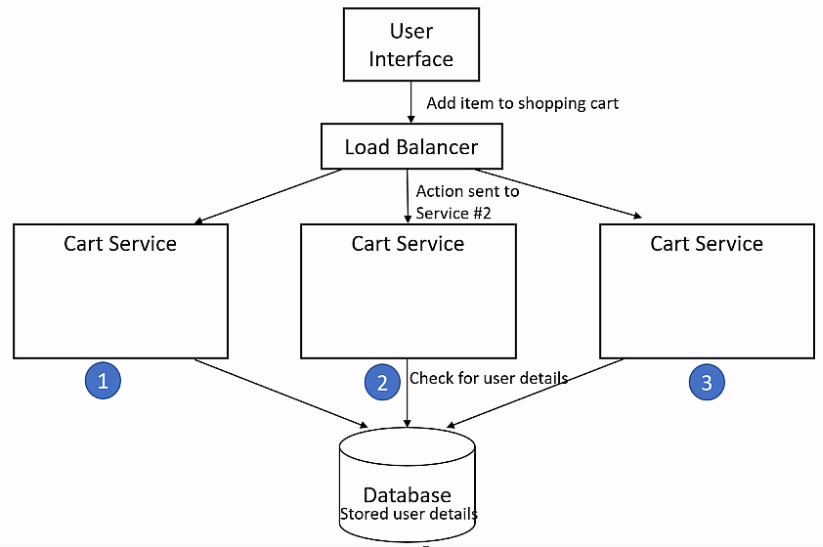

In a stateless architecture, no data is stored in the service itself. This means the behaviour will be the same regardless of which server a request was routed to.

10.3. Caching

Caches store data locally to avoid retrieving the same data from the database multiple times. It trades reliability of data (it is stored in volatile memory) for improved performance.

A cache should store data that is frequently accessed and rarely modified.

Two types of cache:

In-memory cache - Cache stored in memory on a single service
- Pros:
  - Best performance
  - Can store any objects
  - Easy to use
- Cons:
  - Size is limited by the process’s memory
  - Can grow stale/inconsistent if the service is scaled out to multiple servers
Distributed cache - Cache is independent of the services and can be accessed by all servers
- Pros:
  - Supports scaled out servers
  - Failover capabilities
  - Storage is unlimited
- Cons:
  - Setup is more complex
  - Often only support primitive data types
  - Worse performance than in-memory cache

10.4. Messaging

Messaging methods can be evaluated on these criteria:

Performance
Message size
Execution model
Feedback (handshaking) and reliability
Complexity

Messaging methods include:

REST API
HTTP Push
Queue
File-based and database-based methods

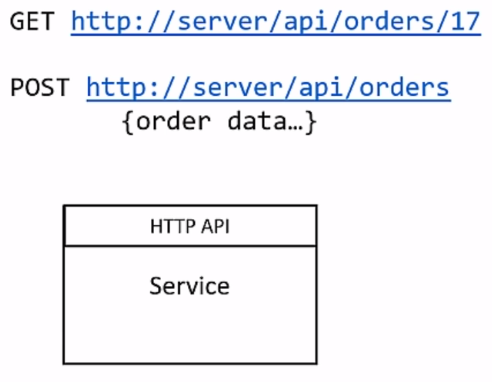

REST API

Universal standard for HTTP-based systems.

Useful for traditional web apps.

Criteria	Evaluation
Performance	Very fast
Message size	Same as HTTP protocol limitations - GET 8KB, POST ~10MB
Execution model	Request/response - ideal for quick, short actions
Feedback	Immediate feedback via response codes
Complexity	Extremely easy

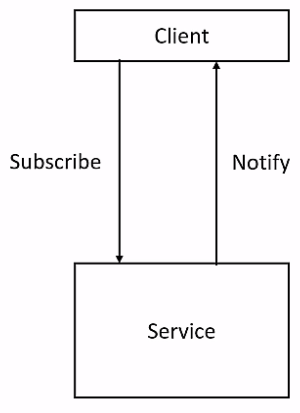

HTTP Push

A client subscribes to the service waiting for an event. When that event occurs, the server notifies the client.

For real-time messaging, these often use web sockets to maintain the subscription connection, rather than a traditional request/response model.

Useful for chat or monitoring.

Criteria	Evaluation
Performance	Very fast
Message size	Limited, few KB
Execution model	Web socket connection / long polling
Feedback	None (fire and forget)
Complexity	Extremely easy

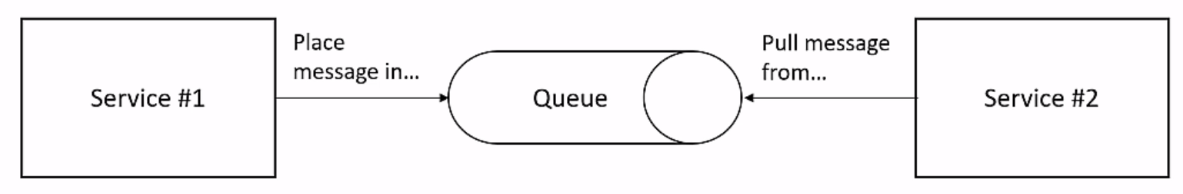

Queue

The queue sits between two (or more) services. If service A wants to send a message to service B, A places the message in the queue and B periodically pulls from the queue.

This ensures messages will be handled exactly once and in the order received.

Useful for complex systems with lots of data, when order and reliability are important.

Criteria	Evaluation
Performance	Slow - push/poll time and database persistence
Message size	Unlimited but best practice to use small messages
Execution model	Polling
Feedback	Very reliable but feedback depends on the monitoring in place to ensure messages make it to the queue and get executed
Complexity	Requires training and setup to maintain a queue engine

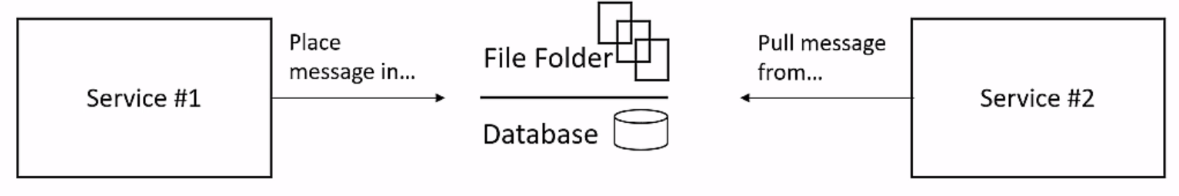

File-based and DB-based

Similar to queue, but rather han placing messages in a queue it places them in a file directory or database. There is no guarantee that messages are processed once and only once.

If multiple services are polling the same file folder, then when a new file is added we can get two issues:

File locked
Duplicate processing

Similar use case to queues, but queues are generally preferred.

Criteria	Evaluation
Performance	Slow - push/poll time and database persistence
Message size	Unlimited
Execution model	Polling
Feedback	Very reliable but feedback depends on the monitoring
Complexity	Requires training and setup to maintain the filestore or database

10.5. Logging and monitoring

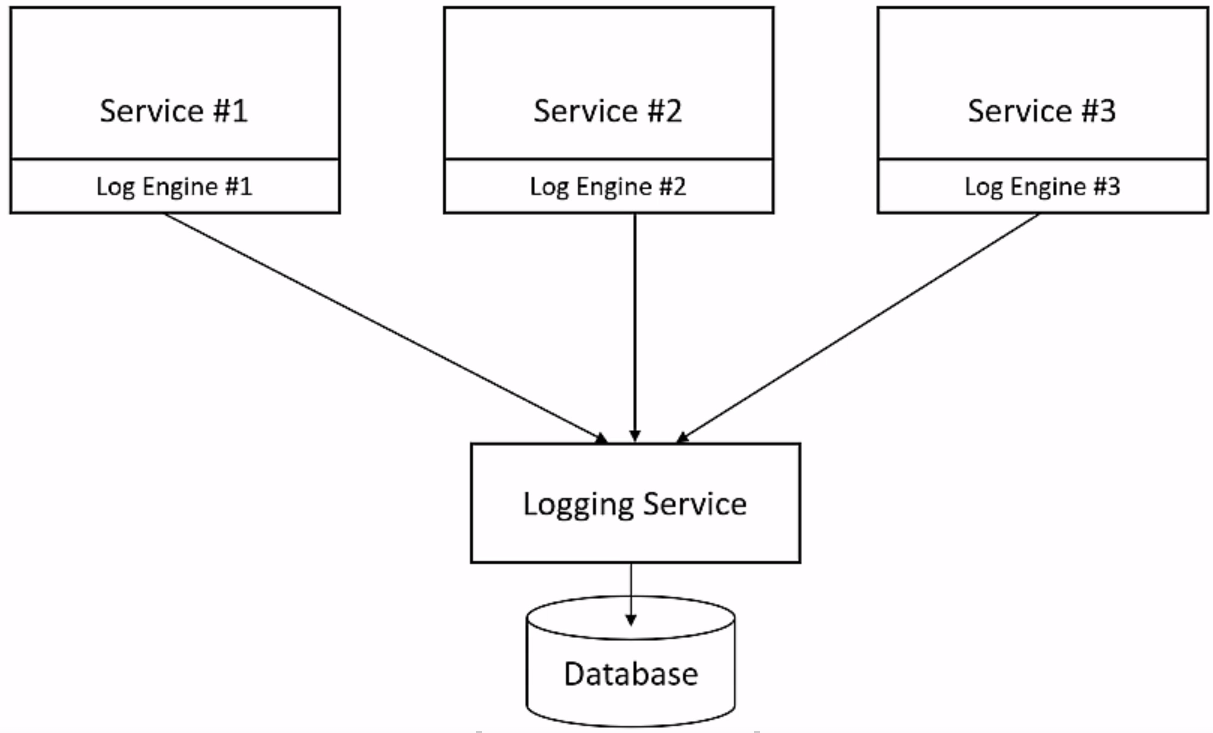

Central logging service

Create a central logging service that all other services call to write to a central database. This solves the problem where each microservice has its own log format, data and location. For example, some might be in files, SQL database, NoSQL database, etc.

Implementation can be via an API or polling folders that each of the services write to.

Correlation ID

Correlation ID is an identifier attached to the beginning of a user flow and is attached to any action taken by that user, so that if there is an error at any point the user flow can be traced back through the different services’ logs.

11. External considerations

External considerations can affect architecture and design decisions.

Deadlines
Dev team skills - New technologies can introduce uncertainty, delays and low quality
IT support - Assign who will support the product from the outset. This should not be developers.
Cost - Build vs buy. Estimate cost vs value. Spend money to save time, don’t spend time to save money.

12. Architecture document

This should describe the basic elements of the system:

Technology stack
Components
Services
Communication between components and services

No development should begin before the document is complete.

Goals of the document:

Describe what should be developed and how
List the functional and non-functional requirements

Audience:

Everyone involved with the system: project manager, CTO, QA leader, developers
Sections for management appear first as they are unlikely to read the whole document
QA lead can begin preparing test infrastructure ahead of time

Format: UML (universal modeling language) is often used. It visualises the system’s design with concepts and diagrams. However, this assumes the audience is familiar with UML which is often not the case.

Keep the contents as simple as possible
Use plain English
Visualise using whatever software is comfortable and appropriate

Structure:

Background
Requirements
Executive summary
Architecture overview
Components drill-down

Background

This section validates your point of view and instils confidence that you understand the project.

One page for all team and management.

Describe the system from a business POV:

The system’s role
Reasons for replacing the old system
Expected business impact

Requirements

Functional and non-functional requirements - what should the system do and deal with? This section validates your understadning of the requirements. The requirements dictate the architecture so this section sets the scene for the chosen architecture.

One page for all team and management.

This should be a brief, bullet point list of requirements with no more than 3 lines on each.

Executive summary

Provide a high-level view of the architecture.

Managers will not read the whole document; <3 pages for management.

Use charts and diagrams
Write this after the rest of the document
Use technical terms sparsely and only well known ones
Be concise and don’t repeat yourself

Architecture overview

Provide a high-level view of the architecture in technical terms. Do not deep dive into specific components

<10 pages for developers and QA lead.

General description: type and major non-functional requirements
High-level diagram of logical components, no specifics about hardware or technologies
Diagram walkthrough: describe the various parts and their roles
Technology stack: iff there is a single stack include it here, otherwise include it in the components drill down section

Components drill down

Detailed description of each component.

Unlimited length, for developers and QA lead.

For each component:

Component’s role
Technology stack: Data store, backend, frontend
Component’s architecture: Describe the API (URL, logic, response code, comments). Describe the layers. Mention design patterns here.
Development instructions: Specific development guidelines

Be specific and include rationale behind decisions.

13. Advanced architecture topics

These architecture patterns solve specific problems but add complexity to the system, so the costs and benefits should be compared.

13.1. Microservices

An architecture in which functionalities are implemented as separate, loosely coupled services that interact with each other using a standard lightweight protocol.

Problems with monolithic services:

A single exception can crash the whole process
Updates impact all components
Limited to one development platform/language
Unoptimised compute resources

With microservices, each service is independent of others so can be updated separately, use a different platform, and be optimised separately.

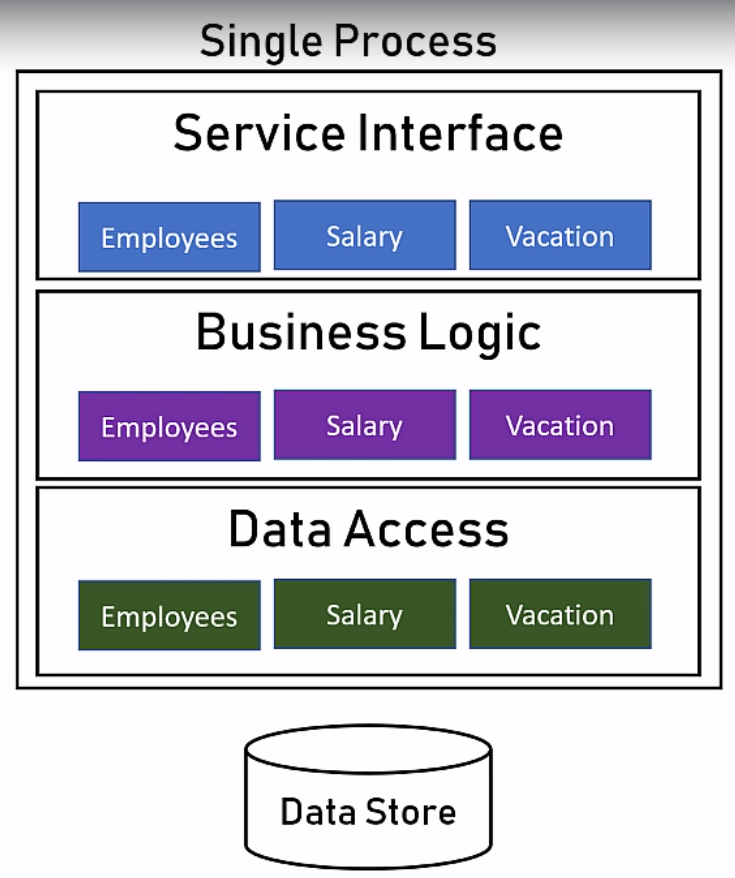

An example of splitting a monolithic architecture into microservices:

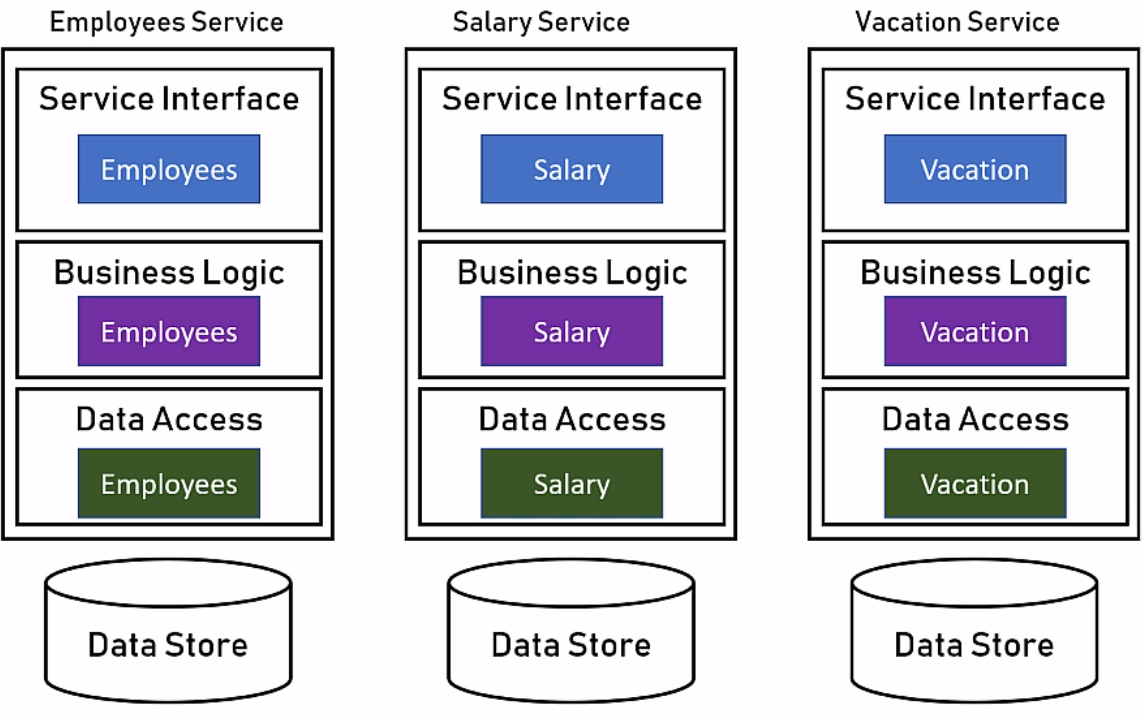

As a microservice architecture, this becomes:

Problems with microservices:

Complex monitoring of all services and their interactions
Complex architecture
Complex testing

13.2. Event sourcing

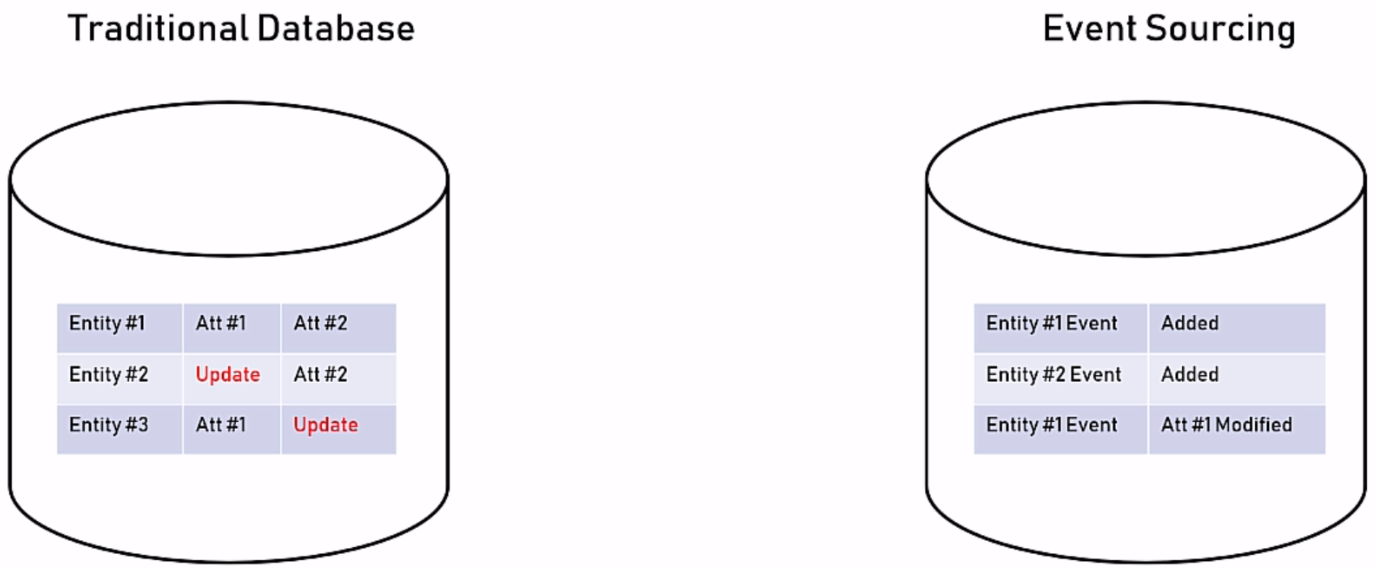

Storing the deltas to each entity rather than updating it. The events can then be “rebuilt” from the start to give a view of the state at any given point in time.

Use when history matters.

Pros:

Tracing history
Simple data model
Performance
Reporting

Cons:

No unified view - need to rebuild all events from the start to see the current state
Storage usage

13.3. CQRS

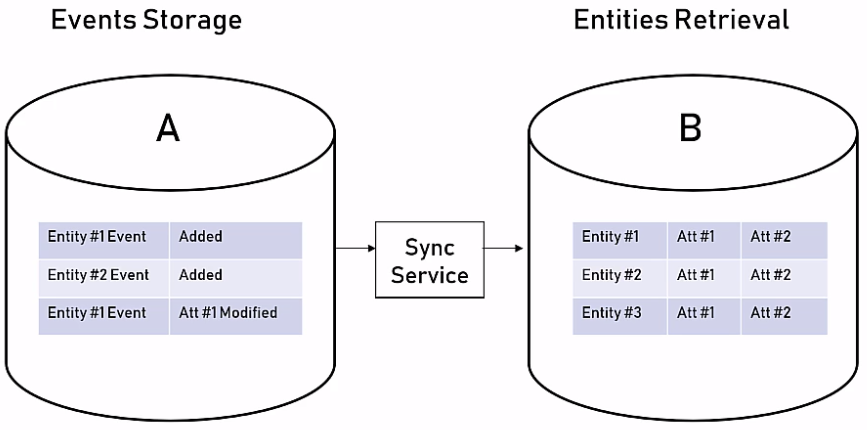

Command query responsibility segregation. Data storage and data retrieval are two separate databases, with a sync service between the two.

This integrates nicely with event sourcing, where events (deltas) are stored in one database and the current state is periodically built and stored in the retrieval database.
